Salt Wall Layout: Turn Measurements into a Clear Plan
Content updated September 27, 2026.
A salt wall layout turns a rough material estimate into a drawing that your installer can review. It shows the finished opening, row pattern, borders, cuts and any service access. You can use it to compare design options before ordering, reducing decisions made around partially installed material. At Build Salt Wall, we recommend starting with the intended face dimensions and the exact product size you plan to purchase.
Salt wall layout: Quick Summary
Measure the opening inside the finished frame, choose the piece orientation and draw the rows to scale. Use area calculations as an initial check, then count the actual layout. Record joint widths, perimeter details, cut pieces and spares separately. Confirm the support and attachment method with your installer; a neat elevation drawing does not establish structural adequacy.
Establish the Finished Opening
Measure the available width and height at more than one point. Identify skirting, trim, ceiling details, sockets and other interruptions. Record measurements in one unit throughout the drawing. If your room dimensions use feet and inches, convert carefully before dividing by the tile dimensions. A four-foot opening is 48 inches, not 40 inches.
Your drawing should show the visible salt area after the frame and perimeter details take their space. Ask the installer to confirm the final opening before purchasing the material. Existing walls may vary from an early plan, and the approved support system can change the available area. Keep the latest measured drawing tied to the quotation.
Work Through a Simple Grid Example
Consider an opening measuring 48 by 48 inches and pieces with nominal eight-by-four-inch faces. With the eight-inch side horizontal, the arithmetic gives six pieces across and twelve rows high: 72 faces in a simple grid. The area method reaches the same baseline, since 16 square feet multiplied by 4.5 equals 72.
That example assumes nominal dimensions with no allowance for joints or perimeter requirements. It is not a construction instruction or final order quantity. Real pieces, the chosen assembly and the finished opening need review. If the actual design includes joints or a different usable opening, redraw the courses rather than forcing the nominal count to fit.

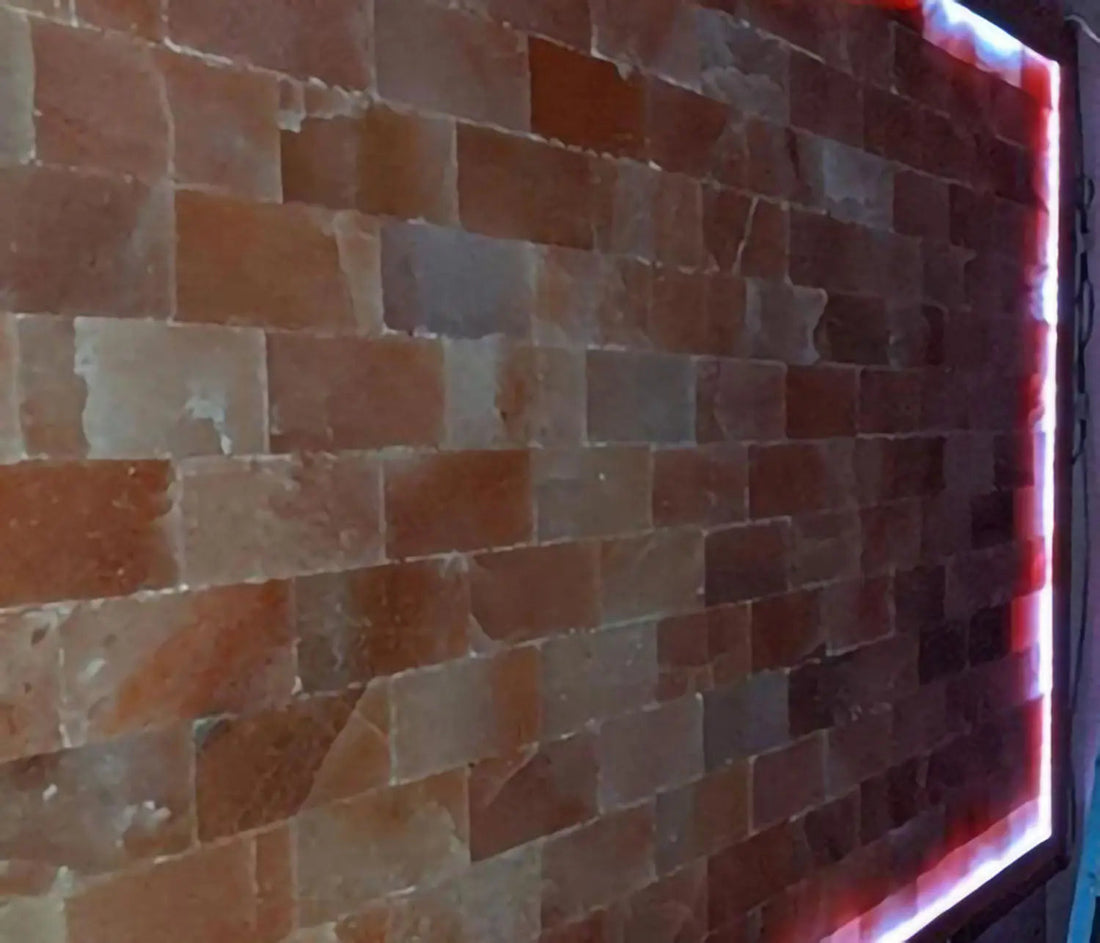

Account for a Staggered Pattern
A running-bond appearance offsets alternate rows. That change introduces edge pieces and affects the cutting schedule, even when the total face area remains similar. Draw each end condition and identify reusable offcuts. Do not assume two half pieces always come from one perfect cut: the method, material condition and cutting loss affect what you can use.
Compare Thickness Without Changing Face Area
Review salt bricks and salt tiles by their exact listed dimensions. If both have eight-by-four-inch faces, their nominal coverage is the same. A thicker piece changes depth and weight; it does not automatically double the number of visible square feet in the order.
Show a section drawing beside the elevation. Include the salt, backing or support, frame and any lighting cavity. This helps you see how far the finished feature projects into the room. Your installer should determine support requirements from the complete assembly, rather than treating a thinner product as automatically suitable for any existing wall.
Resolve Borders and Openings Early
Mark every interruption on your salt wall layout before finalizing the pattern. A socket, shelf or access panel can break the row rhythm and create awkward narrow pieces. Discuss the position of these elements with the relevant trades. Moving a service point may need separate electrical work and should not become an improvised installation-day decision.
Choose how the pattern meets the frame at the top, bottom and sides. Compare a centered arrangement with one aligned to a nearby architectural feature. A balanced border may matter more visually than avoiding every cut. Use a small dry arrangement or paper grid to test the view before approving a drawing.
Plan Lighting as Part of the Drawing
For an illuminated feature, identify the lighting zone, power route, controls and maintenance access. Ask your electrician to specify suitable components and review operating conditions. Test representative salt pieces with the proposed lighting so your drawing reflects visible shadows and edge details. A perfectly regular grid can still reveal uneven illumination if the lighting design remains unresolved.
The Department of Energy’s LED overview provides useful background when comparing light sources. Use the actual component instructions for your installation. General LED information does not specify the correct spacing, cavity depth or electrical arrangement for a salt panel.
Turn the Drawing into a Material Count
List full pieces, cut pieces, expected reusable offcuts and the reserve allowance. Keep the quantities for separate panels separate until each drawing has approval. Then compare the combined requirement with available pack sizes. Any excess purchased because of pack quantities should remain visible, rather than disappearing into an unexplained waste percentage.
For an area-based cross-check, use our salt wall calculator guide. An estimate helps you spot arithmetic mistakes, but the approved row drawing should guide detailed purchasing. Record the assumptions used for joints, trimming and damaged or unsuitable pieces so future changes remain traceable.
Hand Over One Agreed Version
Date your drawing and include product references, room conditions and the professionals responsible for support and electrical work. Photograph a sample arrangement if color placement matters. Retire superseded versions from the work area so your installer does not combine an old quantity schedule with a newer opening size.
Send your salt wall layout through our contact page when you want help identifying listed material packs. Include the finished opening and preferred thickness. A clear drawing gives everyone a practical starting point for discussing the order without treating a generic online example as a complete installation design.
